Description

Velocity is not trivia.
It is the foundation of everything that follows.

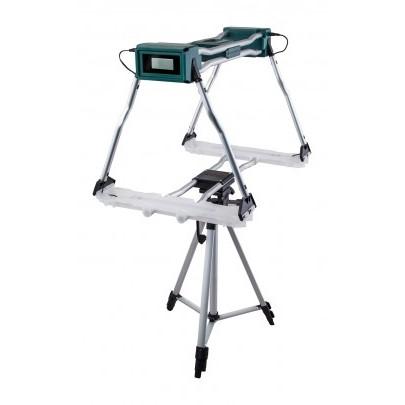

The Caldwell Ballistic Precision Chronograph G2 exists to answer a single, critical question with repeatable accuracy: what is the projectile actually doing when it leaves the muzzle? Without that answer, ballistic tables, dope cards, and solver outputs are only approximations.

The G2 departs from traditional sky-screen chronograph layouts by inverting the sensor system, placing its optical sensors below the projectile path rather than above it. This configuration reduces false readings caused by inconsistent overhead lighting and allows the unit to function reliably indoors, in shade, or under mixed light—conditions that frequently invalidate conventional chronographs.

Its 18-inch sensor spacing increases timing resolution, while a 48 MHz processor and factory computer calibration push velocity measurement accuracy to within ±0.25%. Built-in LED illumination supplements ambient light when needed, maintaining consistency across environments without user improvisation.

Paired Bluetooth connectivity allows velocity strings, notes, and environmental context to be logged and exported through the companion app, making the G2 a practical bridge between raw measurement and applied ballistic analysis. Whether validating factory ammunition, confirming handloads, or establishing real muzzle velocity for solver input, the chronograph becomes a truth anchor for every downstream decision.

This is not a range toy.
It is a verification instrument—and verification is where precision begins.

Technical Scope

The Ballistic Precision Chronograph G2 functions as a primary measurement tool for velocity validation across rifle, pistol, and archery platforms. Its role is upstream of ballistic solvers, optic dialing, and trajectory modeling—providing verified inputs rather than assumed values.

Specifications

• Manufacturer: Battenfeld Technologies

• Brand: Caldwell

• Model: Ballistic Precision Chronograph G2

• Measurement Range: 5 – 9,999 FPS

• Accuracy: Factory calibrated to ±0.25%

• Sensor Spacing: 18 inches

• Processor: 48 MHz high-speed processor

• Lighting System: Integrated LED light kit

• Connectivity: Bluetooth (smartphone interface)

• Power: Rechargeable lithium-ion battery

• Units: FPS or MPS

• Applications: Firearms, archery, airgun, paintball

• Mounting: Heavy-duty adjustable tripod (15″–42″)

• Quick Mount: 1/4-20 dovetail plate

• Data Handling: App-based logging, notes, environmental context, export via SMS or email

• Storage: Collapsible design with carry case

Relevant Technical Notes & Chapters

6.5 Creedmoor — Cartridge Master Compendium

• Chapter 4 — Ballistic Behavior
  Velocity as the primary driver of drop, drift, and supersonic range.

• Chapter 6 — Reloading the 6.5 Creedmoor
  Why real muzzle velocity matters more than published data.

6.5 Creedmoor — Rifle Master Compendium

• Chapter 7 — Optics Pairing and Long-Range Dope
  Solver accuracy depends on verified velocity inputs.

• Chapter 9 — Common Failure Points & Diagnostics
  Why unexplained misses often trace back to assumed velocities.

6.5 Creedmoor — Technical Notes

• TN-08 — Internal Ballistics Model for 6.5 Creedmoor
  Velocity variation and pressure behavior.

• TN-18 — Zero Philosophy (100 vs 200 yd)
  Chronographed velocity as a prerequisite for correct zero.

• TN-19 — Wind Drift Modeling
  Velocity sensitivity in wind deflection calculations.

Model 1894 — Technical Notes

• TN-05 — Bore, Twist & Caliber-Specific Behavior
  Velocity differences across barrel lengths and twist rates.

• TN-15 — .44 Magnum Lever-Action Twist Rate Selection (1:20 vs 1:16)
  Why measured velocity matters when validating bullet stability.
