Description

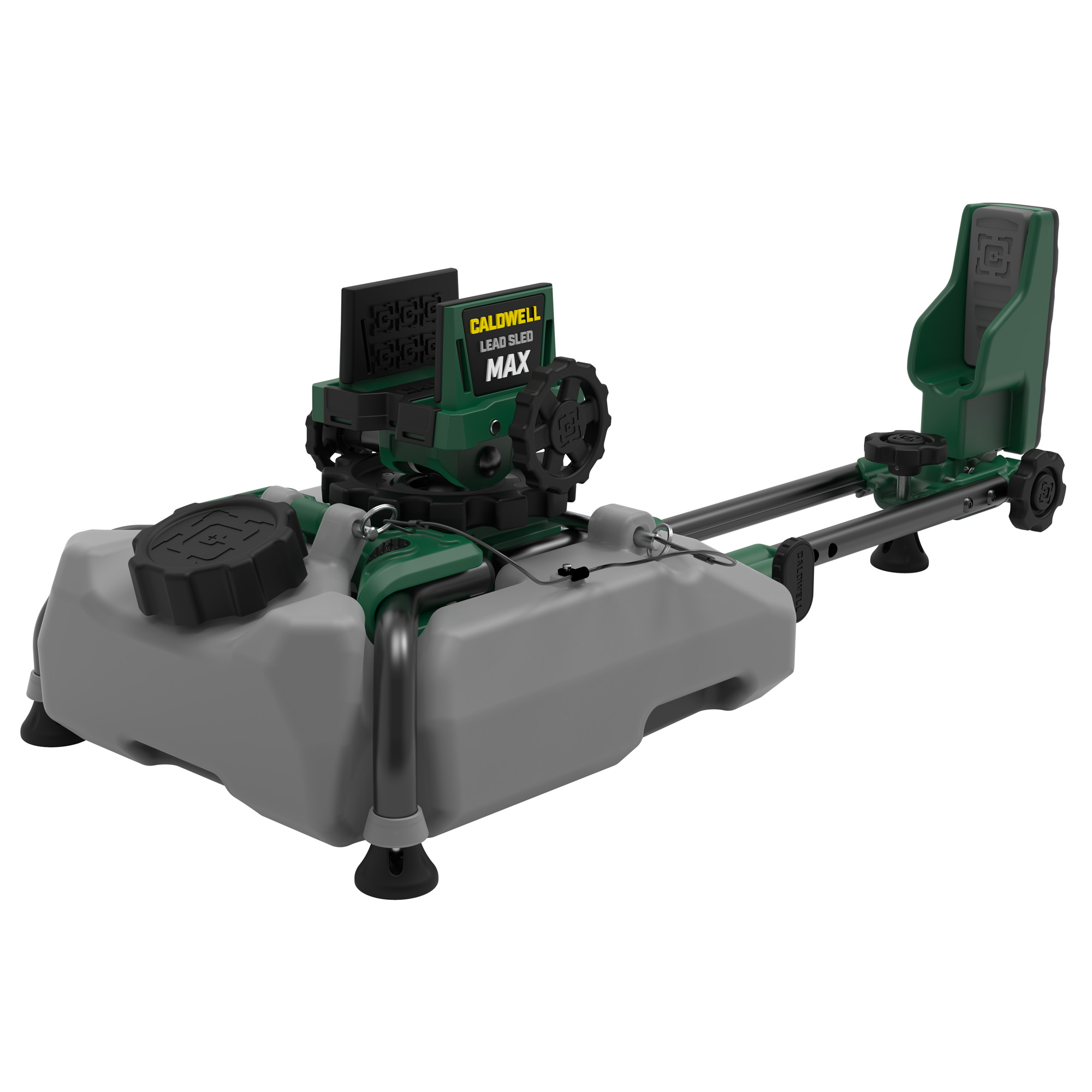

Caldwell Lead Sled MAX | Modular Recoil-Isolation Shooting Rest | Universal Fit

Some rifles — and some tests — demand more than partial isolation.

When recoil energy, platform mass, or cartridge impulse exceed what lighter rests can comfortably manage, the solution isn’t technique — it’s controlled mass and restraint.

The Caldwell Lead Sled MAX is built for those moments.

This is the most configurable and highest-capacity rest in the Lead Sled family, designed to remove nearly all shooter input while safely absorbing recoil from magnum rifles and heavy-impulse platforms. It is not subtle. It is deliberate.

Maximum Mass, Applied Intelligently

The defining feature of the Lead Sled MAX is its detachable 2-gallon weight reservoir, capable of holding:

• water

• sand

• gravel

• other dense fill materials

This allows recoil absorption to be scaled precisely to the firearm being tested, rather than forcing a one-size-fits-all approach. When filled, the system can reduce felt recoil by up to 95%, protecting both shooter and optic during extended testing sessions.

The reservoir is removable, allowing the sled to be configured for:

• lighter rifles

• transport

• storage

• modular use

Mass is applied only when it serves the purpose.

Secure Clamping Without Damage

Unlike traditional open-bag rests, the Lead Sled MAX features a clamping front rest designed to secure the firearm firmly without marring or stressing the stock.

This is critical when:

• validating zero on hard-kicking rifles

• testing optics and mounts

• isolating ammunition behavior

• working with heavy calibers or shotguns

The rifle is held consistently, repeatably, and without distortion — exactly what mechanical testing requires.

Modular by Design, Purpose-Built by Use

The MAX’s modular architecture allows it to transform into three different rest configurations in seconds, adapting to the task at hand rather than forcing the shooter to adapt to the equipment.

The adjustable sliding frame tubes accommodate firearms of virtually any length, while folding capability allows compact transport when the testing session is complete.

Fine adjustment controls include:

• enlarged elevation wheel with positive detent feedback

• backlash-free windage and elevation adjustments

• stable rear support geometry

Everything is designed for deliberate, repeatable setup — not speed or convenience theater.

Where the Lead Sled MAX Belongs

Best Use:

• magnum rifle zeroing

• heavy-recoil cartridge testing

• optic and mount validation

• ammunition consistency evaluation

• extended bench sessions without fatigue

Not Intended For:

• recoil management training

• positional shooting

• field simulation

• fundamentals development

This is a laboratory-grade bench tool, not a shooting skill aid.

Referenced In

Shooter’s Edge Magazine — Issue No. 1
Ballistics Bench — The Velocity Window (Lower & Mid-Range Validation)
Bench Setup — Eliminating Shooter-Induced Variables

Related Chapter & Technical Notes:

• CHAPTER 5 — Factory Loads Landscape

• Chapter 9 — Cartridge Family & Variants

• TN-11 — Factory Ammo Consistency Studies (6.5 Creedmoor)

• TN-08 — Velocity Window Optimization

• TN-24 — Drop & Drift Table (100–1,200 yd)

Specifications

• Brand: Caldwell
• Model: Lead Sled MAX
• Type: Shooting Rest
• Fit: Universal
• Frame Design: Modular Adjustable System
• Recoil Reduction: Up to 95% (with added mass)
• Weight Reservoir: Detachable 2-Gallon Capacity
• Weight Fill Options: Water, Sand, Gravel, Other Dense Materials
• Front Rest: Clamping Head (Non-Marring)
• Length Adjustment: Sliding Frame Tubes
• Elevation Adjustment: Enlarged Wheel with Positive Detents
• Windage Adjustment: Backlash-Free
• Color: Green
• UPC: 198700000946
• MFR #: 3004222
